KIV Industrial Engineering
Control panel design
Electrical schematics, panel layouts and bills of materials (BOMs) for new control panels and for changes to existing ones.
What we do
Electrical schematics
Power and control circuits drawn out for the panel.
Panel layouts
Where every device sits on the back-plate and the door.
Bills of materials
The parts list for the build, matched to parts we can supply.
Changes to existing panels
Updated drawings when a panel is modified or extended.
How we do it
Your requirements
What the panel controls, the I/O, the power available and how it will be used.
Schematics
We draw the power and control circuits.
BOM
The parts list, checked against our own shelves and our sourcing network.
Layout
Back-plate and door layout for the enclosure.
Your review
You review the drawings and BOM before anything is built.
Every project starts the same way: you send what you have, we go through it with you on a scoping call, and you get a written quote for the agreed scope. Payment is due before work starts or parts ship, as the quote states. Lead times are quoted with each project.
What you get and what we need
What you get
- Electrical schematics
- Panel layout
- Bill of materials (BOM)
What we need from you
- Drawings you have – Existing schematics, layouts or hand sketches (PDF, DWG, a photo or a spreadsheet).
- Photos – Photos of the panel, the nameplates and the wiring as it is today.
- What it should do – What the machine or line does, and what should change.
Why KIV Industrial Engineering
- 270,000+parts on our own shelves – search our inventory while you plan the project.
- Obsolete partsfound through our sourcing service – useful when old hardware has to keep running.
- DFW + nationwideon-site work in the Dallas–Fort Worth area; design, programming and built panels shipped nationwide.
Parts in stock for this kind of work
A few of the terminal blocks, miniature breakers, circuit breakers on our shelves right now.
Phoenix Contact
3208964
Phoenix Contact 3208964 Fused Terminal Block LED 10A 24V Push-in 4mm2 AWG 24-10
Only 1 left
Free shippingShips today by 3 PM CT
$41.89
Allen-Bradley
1492-CB3

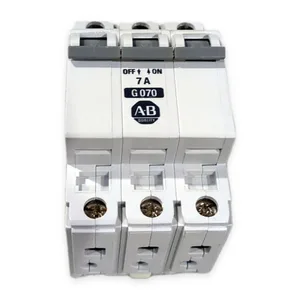

Allen-Bradley 1492-CB3G070 Supplementary Protector 3 Pole 7A 480VAC 10kA Ser B
Only 1 left
Free shippingShips today by 3 PM CT
$15.89
Siemens
5SJ4101-7HG41

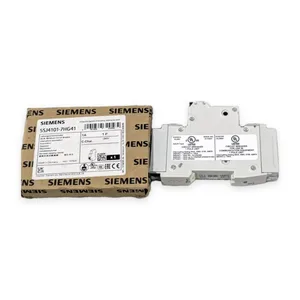

Siemens 5SJ4101-7HG41 1P 1A C-Curve Miniature Circuit Breaker 240VAC DIN Rail
Only 2 left
Free shippingShips today by 3 PM CT
$27.89
Bulletin
1X10-250
Allen-Bradley 140G-I-TLC13 Ser A Breaker Terminal Lug Kit 10-250 MCM Cu 3 Lugs
Only 1 left
Free shippingShips today by 3 PM CT
$26.89
Schneider Electric
9LB-IN
Schneider Electric 60113 C60 Circuit Breaker 1P C 20A 240VAC 60VDC DIN Rail
Only 1 left
Free shippingShips today by 3 PM CT
$24.89
V.adj
W15NT1110
Acopian W15NT1110 Switching Regulated DC Power Supply 15 VDC 11.1A Fan V.adj LED
Only 2 left
Free shippingShips today by 3 PM CT
$61.89
Switching
ULS08
Wieland 81.000.6130.0 Power Supply 24VDC 5A 120W 115/230VAC DIN Rail 22.5-28.5V
Only 1 left
Free shippingShips today by 3 PM CT
$153.89
Questions about control panel design
Can you design changes to a panel we already have?
Yes. We design changes to existing panels as well as new ones: send the drawings you have and photos of the panel.
Can you also build the panel you design?
Yes. We build panels in-house, with parts from our own stock and our sourcing network.
How long does a design take?
Lead times are quoted with each project.
How do I pay?
A written quote for the agreed scope. Payment is due before work starts or parts ship, as the quote states.
Related guides
How to source obsolete and discontinued automation parts without long downtime
What to do the day a discontinued PLC, drive or HMI fails – and how to stop it from being an emergency next time.
SLC 500 end of life: keep it running on spares or migrate to CompactLogix
Where the SLC 500 stands, which spares keep one running, and how a phased move to CompactLogix keeps downtime short.
Manufacturer lifecycle status for obsolete automation parts, family by family
Active, Active Mature, End of Life and Discontinued in plain English, how to check a part, and family pages with the manufacturer's own dates.
Tell us about the project
Send drawings, photos or a parts list – we reply by email to set up a scoping call.
